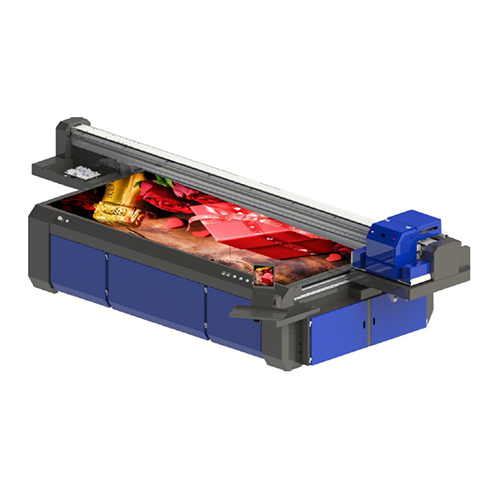

MPAD Beyonder 2512
UV Flatbed printer
Structure
Solid machine chassis with heavy duty design provides stable platform for long time use life of 5-7 years.High quality table with excellent flatness as accurate printing platform with efficient vacuum suction.
Driving System
Equipped with dual ball screws and dual motors at Y axis for accurate prints.
Excellent P.H.
Available to put high speed 4-16 KM1024A/1024I printheads as configuration of 2(CMYK)+2W, 3(CMYK) and 4(CMYK) for mass production capability.
Ink Stirring System
Optional with PLC controlled ink supply and stirring system to ensure reliable ink supply and fluent printing performance.
Specifications
Beyonder 2512
Colors Configuration
2(CMYK)+WW; CMYKLcLm+WW; 3(CMYK) 4(CMYK)
Dimension (mm)
4400 x 2080 x 1500
Media Thickness
100mm/4inch
Net Weight
1500Kgs
Number Of P.H.
4-16
Power Condition
AC 220V, 5.5KW/6.6KW
Print Head Type
Konica1024A/1024I
Print Size
2500 x 1300mm (W*L)
Rip Software
Caldera, Photoprint
Speed Fine Mode
56m2/h
Speed High Quality Mode
48m2/h
Speed Production Mode
95m2/h
Table Type
Vaccum Table
