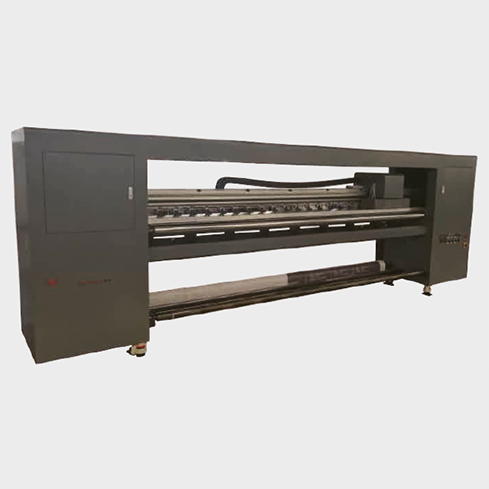

MPAD Smatch 3200
RTR Printer
Heavy Duty Design
Adopt heavy duty design, high quality processing with machine chassis, which ensures precise printing and longer use life.
Driving Sysyem
Adopt high quality pinch rollers and inflatable steel media rollers to take up and feed materials, which ensures accurate stepping and avoid media slant and wrinkle problems.
Accurate Print
Install dual towlines in X axis for smooth movement.
UV Curing System
Install LED curing system to prevent materials heat deformation and save power.
Options
Optional with Ricoh Gen5 and Konica1024i printheads to fit the demand of high quality and high
production.
Specifications
Smatch 3200
Colors Configuration
2(CMYK LC LM) | 2(CMYK)+W+V
Dimension (mm)
5200 x 800 x 1700
Media Thickness
2 - 5mm
Media Types
Flexible
Number Of P.H.
3, 4, 6
Power Condition
Single Phase 220V, 4.5KW
Print Head Type
Ricoh Gen5
Print Speed
1080dpi @ 30m2/h | 1440dpi @ 20m2/h
Print Width for Roll
3200mm
Rip Software
Caldera, Photoprint
