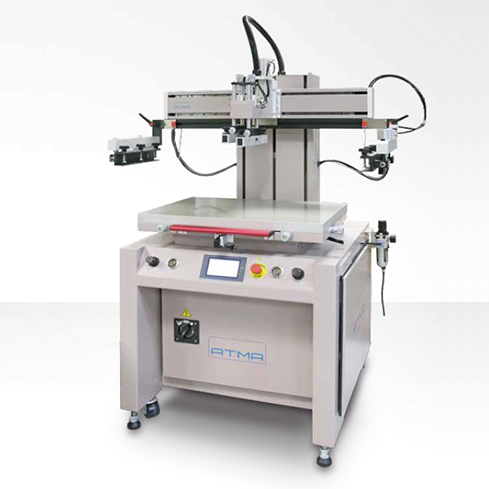

ATMA AT - 60FA
Medium Size Pneumatic Flat Screen Printer
Suitable for flat screen printing industrial product such as Self-adhesive Commercial Logo, Credit Card (Member), Nameplate, UV Varnishing, Leather, etc.
Double guide rail structure is used for screen vertical up down, fast and stable silent motion.
Equipped with peel-off function to avoid stick on mesh after printing.
Depending on demand to equip vacuum motor or slotted table top to get mounted fixture.
Digitalized control HMI, diverse function, easy and quick operation.
Auto display error message function to guide error exclusion promptly.
Specifications
AT - 60FA
Air Exhaustion (L/min)
145.6
Air Pressure (kg/cm2)
5 - 7
Dimension WxDxH (mm)
1130 x 900 x1700
Max Frame O/D Size (mm)
700 x 950
Max Printing Area (mm)
405 x 600
Power Consumption (kW)
0.57
Power Source
1Φ, 220V, 50/60Hz
Productivity
760 P/H
(non-stop full speed full stroke)
Substrate Thickness (mm)
0 - 30
Table Size (mm)
500 x 700
Weight (kg)
325
