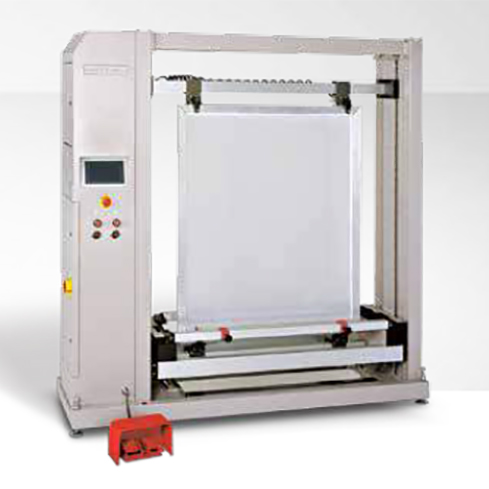

ATMA AT - C1012D
Digital Automatic Emulsion Coating Machine
Specialized in coating emulsion evenly onto screen mesh.
Motorized stable coating, uniform thickness layer.
Frame clamper moved freely to match various screen size.
Foot pedal switch to lock and unlock screen frame to facilitate operation.
Single and double sided coating, provide selectable various modes.
Number of front / back coating, independent setting pressure.
Setting 100 groups of memory.
Specifications
AT - C1012D
Dimension (mm)
1830 x 530 x 1900
Frame Height (mm)
20 - 45
Max Coating Area (mm)
900 x 1100
Max Frame O/D Size (mm)
1050 x 1250
Weight (kg)
340
