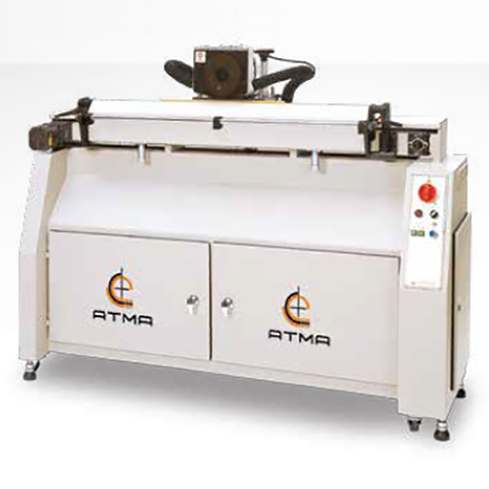

ATMA AT - S100

Automatic Squeegee Sharpener

Specialized in grinding squeegee rubber in straight and sharp to ensure printing effective.

Linear guide rail leading, excellent true straightness.

Fast clamping squeegee, adjustable the exposed height of squeegee.

Used diamond wheel, auto reverse, excellent grinding effective.

Adjustable rotation speed, depth, stroke, angle of grinding.

Equipped with suction device to maintain clean working environment.

Specifications
AT - S100
Dimension WxDxH (mm)
1660 x 600 x 1280

Grinding Angle ( °)
0 - 30

   (Squeegee rubber thickness:14-20mm)

Grinding Angle ( °)
0 - 45

   (Squeegee rubber thickness:9mm)

Grinding Stroke (mm)
1000

Weight (kg)
267
