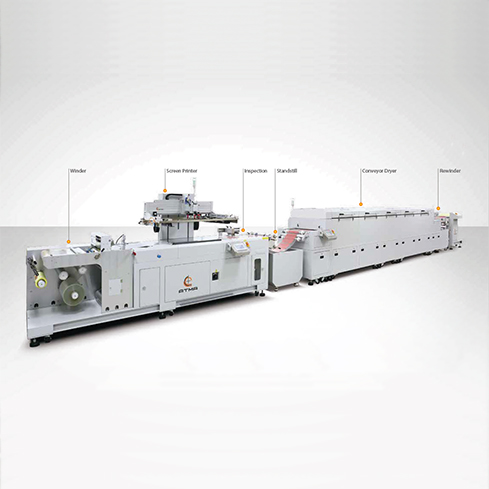

ATMA ATMALINE RR5060/S

Fully Automatic Roll-to-Roll Screen Printing Line

Multiple function roll-to-roll automatic printing line for all flexible rolled material, Such as RFID Antenna, Flexible PCB, Membrane Switch, Blood Glucose Tester, Smart Card, Heat Transfer, Label, Sticker, etc.

Roll-to-Roll precise positioning transmission technology + low tension control reeling system
* Adopt servo motor winding to collocate material edge guiding system, reduce material deformation caused by tension to make uncertainty influence and raise production yield rate.
* Winder and Rewinder mechanism with inflatable shaft, ensure material non slipping, convenient loading material.

High precise continual printing
Used servo configuration to match CCD visual auxiliary precise registration methodology, collocated with micro-adjustment screen, combine roll-to-roll transmission control precise registration to attain continual printing without interval space.

Printing film testing technology
Contactless testing defective printing, film thickness uniformity testing.

Winding drying system
Suitable for printing various different size or material of flexible substrate, in compare with horizontal type dryer to reduce substantially production layout floor area.

Stable and fast screen up down
Ball screw rod + hollow shaft reducer + servo motor + break device to control screen up down stability.
