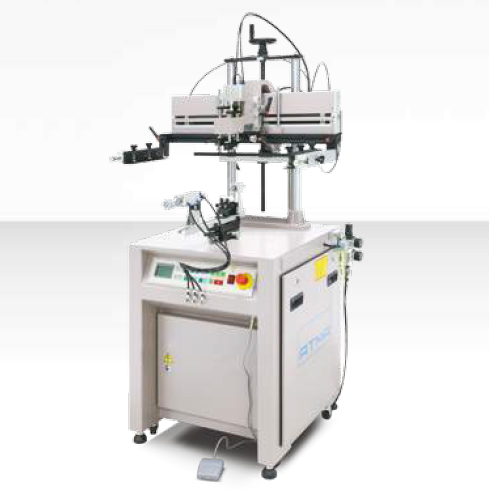

ATMA TY - 500FBT
Mini Curve Screen Printer
Suitable for curve screen printing on various cylindrical, conical or oval shaped object with small diameter, such as mug, bottom, tube and can.
Gear / Cog bar closed synchronous transmission to present original scale proportion of printing image.
Inflatable device is equipped for curve printing soft material substrate.
Screen frame holder / cross seat can be adjusted to facilitate adjusting multi-color printing.
Excellent closed chamber buffer device quickly eliminates impact vibration, perfect seamless connection.
Customizable various fixtures for curve printing.
Specifications
TY - 500FBT
Curve Printing Depth (mm)
200
Curve Printing Diameter (mm)
Φ50 - Φ145
Max Frame O/D Size (mm)
350 x 650
Productivity
1000 P/H
(non-stop full speed full stroke)
