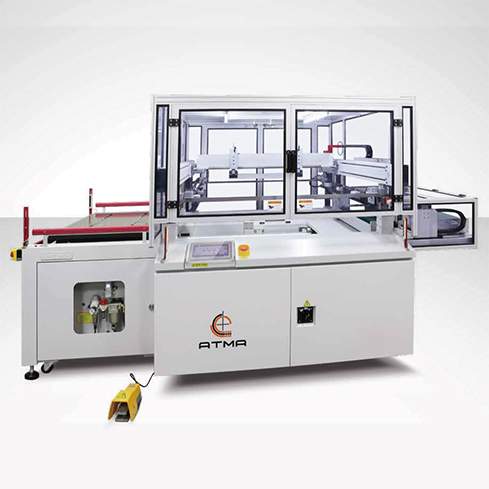

ATMA ATMAOE EG88/E

Automotive Engine Gasket Special Screen Printer

Suitable for precise screen printing engine gasket for car and truck.

High flatness magnetic table
Suitable for adsorptive printing different dimension spec of engine gasket, table is equipped with laystops.

Four-post air locking
Equipped with special unique four-post air locking (when printing), ensure printing stroke and table parallel to raise printing accuracy.

Printing ink layer uniformity
Squeegee / flood coater up down driven by the guided rail cylinder to raise accuracy of linear motion, guiding precision and smoothness, the equalized printing pressure can be presented completely onto substrate, ensure printing ink layer uniformity and consistence.

Servo motor driven directly
Zero defects, solid printing torque, full digital control, full stroke extreme stable speed motion.

Equalized pressure control
Squeegee / flood coater digital equalized pressure system control, individually digital setting pressure (3~62 kgf) on HMI.

Safety protection
Error diagnosis interlocking loop, error indication, mono key auto safety restoration loop, safety light barrier, E-stop button switch, warning lamp and so on, comprehensive safety protection.
