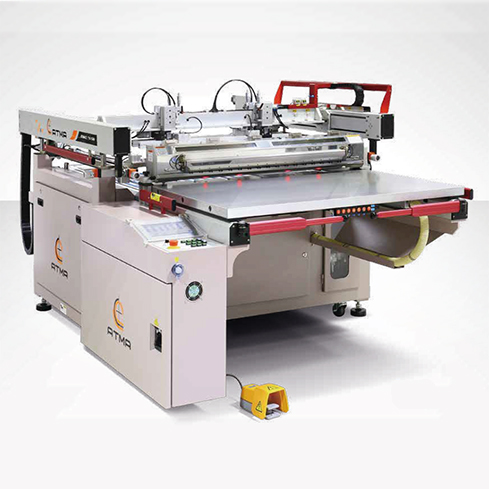

ATMA ATMACE 710/G(6)
Four-post Screen Printer with Gripper Take-off
Suitable for printing medium size Poster, Automotive Decal, Vehicle Advertisement, UV varnishing, etc.
Guided rail is completely covered by rigid Aluminum extrusion profile to prevent ink or dusts contamination to prolong lifetime.
Equipped with micro-adjustment screen, air locking frame holding arm to facilitate quick screen setup and positioning.
Printing table is made of high strength Aluminum alloyed precise processing, high strength and flatness.
Automatic gripper take-off device, substrate is directly off-loaded to Dryer to raise productivity.
Equipped with E-stop button switch, retractable safety bar, etc. safety comprehensive protection.
Specifications
ATMACE 710/G(6)
Air Exhaustion (L/min)
36
Air Pressure (kg/cm2)
5 - 7
Dimension WxDxH (mm)
1950 x 2700 x 1450
Max Frame O/D Size (mm)
1200 x 1400
Max Printing Area (mm)
760 x 1040
Power Consumption (kW)
3.34
Power Source
3Φ, 220V/380V, 50/60Hz
Productivity
720 P/H
(non-stop full speed full stroke)
Substrate Thickness (mm)
0.1 - 6.0
Table Size (mm)
950 x 1390
Weight (kg)
1165
