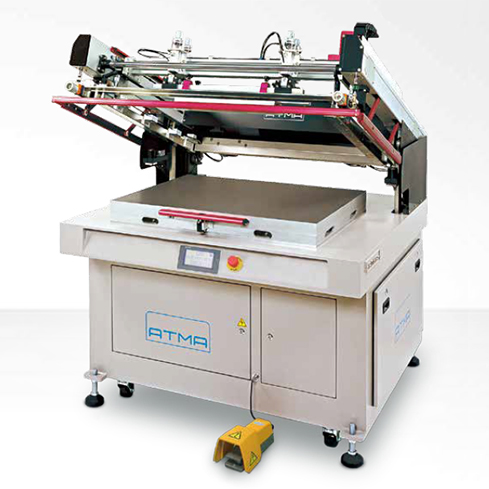

ATMA ATMECH 57
Clamshell Screen Printer
Suitable for high speed screen printing Carbon ink, Resin Plug-via, Legend, etc. on Printed Circuits Boards.
Clamshell design/motorized screen inclined ascent design, fast and stable movement to raise substantial production capacity, durable operating long hours, almost free maintenance.
Solid precision/Top class transmission and guidance system, precise positioning.
Quick setup/various convenient and easy installation adjusting mechanism, quick positioning setup.
Fast and easy operation/pneumatic and electric control system completeness, versatile function, easy and quick operation.
Safety protection/multiple safety protection, auto error diagnosis to ensure staff safety.
Specifications
ATMECH 57
Air Exhaustion (L/min)
62.19
Air Pressure (kg/cm2)
5 - 7
Dimension WxDxH (mm)
1550 x 1520 x 1400
Max Frame O/D Size (mm)
1100 x 1100
Max Printing Area (mm)
550 x 750
Power Consumption (kW)
2.9
Power Source
3Φ, 220V/380V, 50/60Hz
Productivity
900 P/H
(non-stop full speed full stroke)
Substrate Thickness (mm)
1.5 - 17
Table Size (mm)
800 x 1000
Weight (kg)
985
