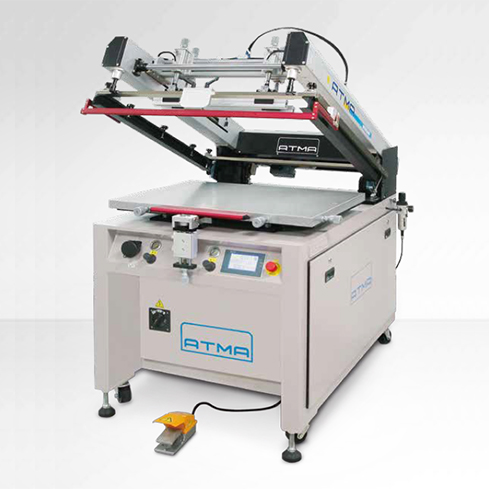

ATMA AT - 68C
Economic Clamshell Screen Printer
Suitable for high speed screen printing Membrane Switch, Nameplate, Commercial Sticker, Transfer Paper, Credit Card, etc.
Unique design table up down, adjustable to provide precise off-contact height.
Screen descent at limit position with electromagnetic lock to assure precise registration and resistance heavy pressure printing.
Various convenience and handy adjustment mechanism, quick screen setup positioning.
Equipped with vacuum motor, enables to adjust vacuum power depending on printing need.
Screen synchronous peel-off device to avoid phenomenon of mesh sticky after printing.
Specifications
AT - 68C
Air Exhaustion (L/min)
22
Air Pressure (kg/cm2)
5 - 7
Dimension WxDxH (mm)
1120 x 1580 x 1400
Max Frame O/D Size (mm)
1000 x 1000
Max Printing Area (mm)
600 x 800
Power Consumption (kW)
2.75
Power Source
3Φ, 220V/380V, 50/60Hz
Productivity
510 P/H
(non-stop full speed full stroke)
Substrate Thickness (mm)
0.1 - 25
Table Size (mm)
700 x 900
Weight (kg)
652
