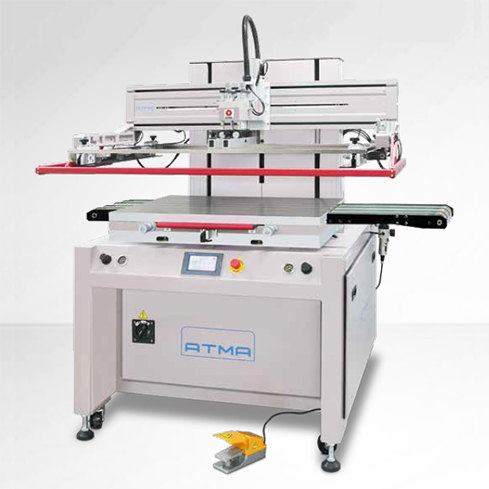

ATMA AT - 80P/B
Electric Flat Screen Printer with Belt Take-off
Suitable for printing rigid material industrial products such as Metal Nameplate, Acrylic, Glass, PCB, etc.
Electric vertical up down design (patented), fast and stable movement.
Printing head up down device facilitates to replace squeegee / flood coater / screen and ink cleaning.
Joined type of frame holder design with strong structure to support heavy pressure printing.
Equipped with auto take-off device, substrate is directly delivered to Dryer to raise production capacity.
Equipped with Emergency Pressing Plate, Safety Bar.
Specifications
AT - 80P/B
Air Exhaustion (L/min)
27.9
Air Pressure (kg/cm2)
5 - 7
Dimension WxDxH (mm)
1800 x 1300 x 1700
Max Frame O/D Size (mm)
900 x 1050
Max Printing Area (mm)
600 x 650
Power Consumption (kW)
2.7
Power Source
3Φ, 220V/380V, 50/60Hz
Productivity
540 P/H
(non-stop full speed full stroke)
Substrate Thickness (mm)
0 - 25
Table Size (mm)
700 x 900
Weight (kg)
840
