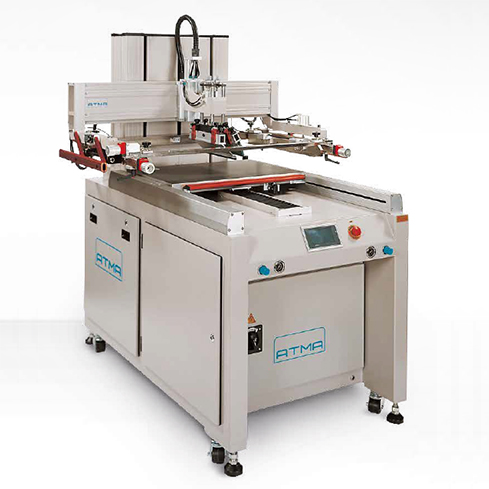

ATMA AT - 60PPD
Digital Electric Sliding Table Screen Printer
Suitable for printing precision products as Silicon Rubber Button Switch (top cover), Membrane Switch, Tablet Display Panel, Flexible Printed Circuits, etc.
Electric vertical up down design (patented), fast and stable movement.
Aluminum alloyed extrusion profile mechanism, height strength with light weight to support extreme strong force.
Screen with three-point micro-adjustment for fast and precise registration.
Fast and precise movement of sliding table structure gains wide space for operation and convenient off-loading.
Printing head up down device facilitates to replace squeegee / flood coater / screen and ink cleaning.
Specifications
AT - 60PPD
Air Exhaustion (L/min)
79.6
Air Pressure (kg/cm2)
5 - 7
Dimension WxDxH (mm)
1350 x 1550 x 1660
Max Frame O/D Size (mm)
700 x 950
Max Printing Area (mm)
400 x 600
Power Consumption (kW)
1.54
Power Source
3Φ, 220V/380V, 50/60Hz
Productivity
720 P/H
(non-stop full speed full stroke)
Substrate Thickness (mm)
0 - 120
Table Size (mm)
500 x 700
Weight (kg)
580
