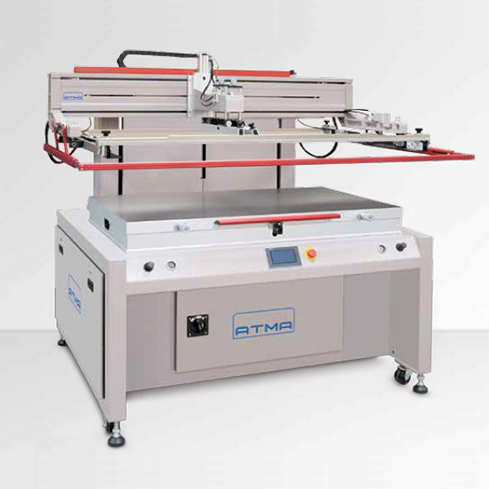

ATMA AT - 80P
Electric Flat Screen Printer
Suitable for printing industrial products such as Membrane Switch, Flexible Printed Circuits, Nameplate, EL, etc.
Electric vertical up down design (patented), fast and stable movement.
Printing head up down device to facilitate replacement of squeegee / flood coater / screen and cleaning ink.
Joined type of frame holder design with strong structure to support heavy pressure printing.
HMI displays Chinese and English language , digitalized control, quick selection, setting and retrieve.
Equipped with Emergency Pressing Plate, E-stop, Safety Bar for comprehensive protection.
Specifications
AT - 80P
Air Exhaustion (L/min)
24.16
Air Pressure (kg/cm2)
5 - 7
Dimension WxDxH (mm)
1500 x 1300 x 1700
Max Frame O/D Size (mm)
900 x 1100
Max Printing Area (mm)
600 x 800
Power Consumption (kW)
2.75
Power Source
3Φ, 220V/380V, 50/60Hz
Productivity
720 P/H
(non-stop full speed full stroke)
Substrate Thickness (mm)
0 - 25
Table Size (mm)
700 x 900
Weight (kg)
685
