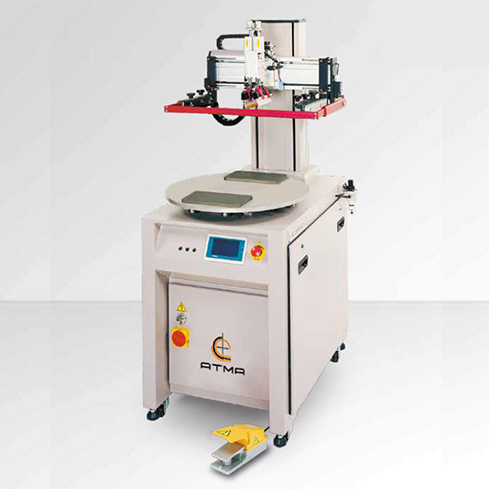

ATMA AT - 45PAD(2I)
Electric Index Table Flat Screen Printer
Suitable for fast printing various small products, such as Smart Phone Cover Lens, Silicon Rubber Button Switch, Cosmetic Container and so on.
Individual fixture with micro-adjustment to facilitate easy and fast screen registration.
Printing stroke is driven by servo motor, fast and stable speed, precise registration.
Easy and quick adjustable squeegee angle / depth / leveling / printing pressure.
Equipped with oil free FR unit, contamination of oil mist exhaust will not be generated.
Auto display error message to guide quickly trouble shooting.
Specifications
AT - 45PAD(2I)
Air Exhaustion (L/min)
8.1
Air Pressure (kg/cm2)
5 - 7
Dimension WxDxH (mm)
1000 x 980 x 1600
Max Frame O/D Size (mm)
320 x 750
Max Printing Area (mm)
200 x 400
Power Consumption (kW)
1.79
Power Source
1Φ, 220V, 50/60Hz
Productivity
1200 P/H
(non-stop full speed full stroke)
Substrate Thickness (mm)
0.1 - 150
Table Size (mm)
200 x 400
Weight (kg)
245
