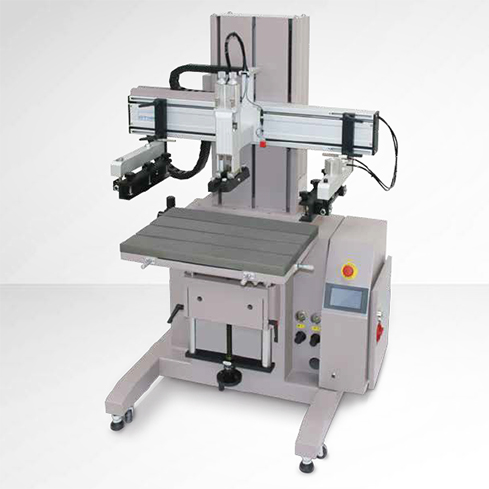

ATMA AT - 60FX
Stereo Casing Flat Screen Printer
Suitable for printing on rigid material cubic objects. For example : Photocopier, Printer, Monitor, Medical Instrument and so on outer case.
Adjustable table height up down depending on substrate height.
Easy and quick adjusting squeegee angle / depth / leveling / printing pressure.
Equipped with slotted table without vacuum (used for fixing fixture), optional vacuum table.
HMI control with versatile function and auto error diagnosis.
Customized fixture for various substrates.
Specifications
AT - 60FX
Air Exhaustion (L/min)
140.8
Air Pressure (kg/cm2)
5 - 7
Dimension WxDxH (mm)
790 x 1055 x 1530
Max Frame O/D Size (mm)
600 x 850
Max Printing Area (mm)
400 x 600
Power Consumption (kW)
0.17
Power Source
1Φ, 220V, 50/60Hz
Productivity
720 P/H
(non-stop full speed full stroke)
Substrate Thickness (mm)
0 - 300
Table Size (mm)
400 x 600
Weight (kg)
236
